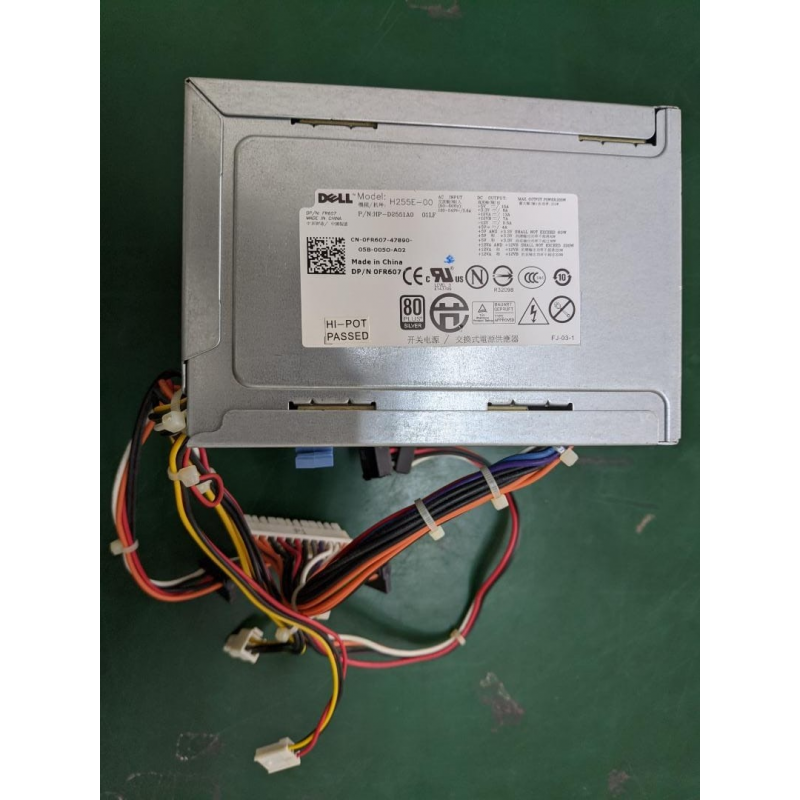

DELL desktop computer power supply

Dell Ultra Quiet Series Desktop Power Supply

DELL BTX series power supply

Dell 915/925/945/955/965 series motherboard 24-pin power supply

DELL 24-pin power connector

Applicable models:

Household machine series: Dimension 3100, 5100, 5150, 9100, 9150, 9200, etc.

Commercial machine series: Optiplex 210L, 320, GX520, GX620, Optiplex745, 755 330, etc.

This power supply is suitable for all the above models (used in the largest case type of MT)

Interface details: SATA*4/Special 6 ports*1/FDD floppy drive*1

Mainboard power interface: P4 4-pin*1pc/dedicated 24-pin*1pc

Special: Universal at home and abroad, just adjust the power input file.

Special voltage stabilizer: a variable voltage stabilizer is installed in the power supply

Maximum output power: 255W

Model: H255E-00

Power parameters:

Input: 100V-120V ~9.0A 50-60HZ (foreign)

Input: 200V-2400V ~4.5A 50-60HZ (China)

Output: +5V DC 22.0A -12V DC 1.0A

12V DC 16.0A +3.3V DC 18.0A
