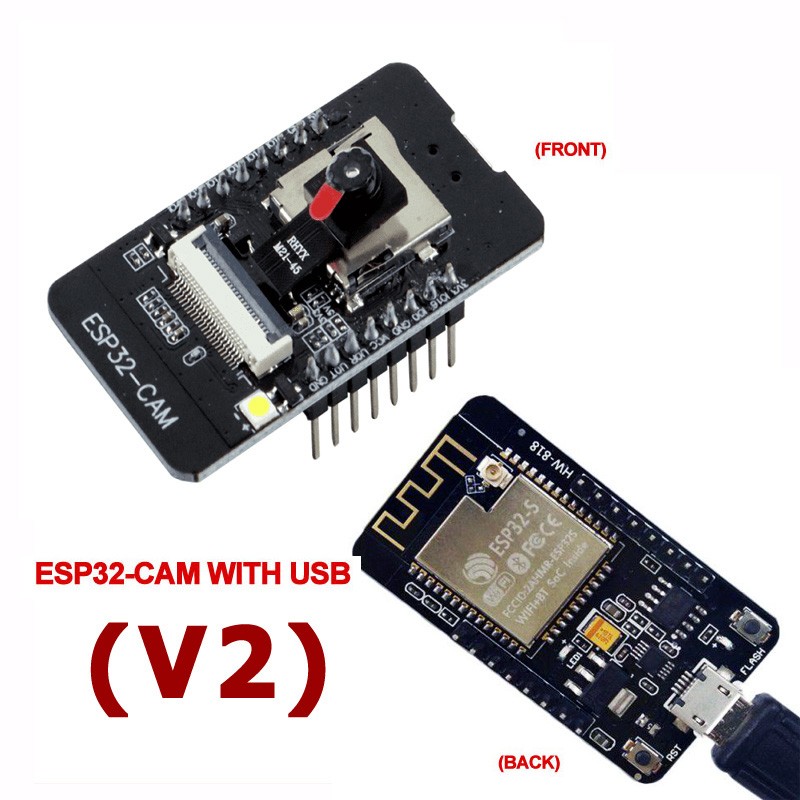

ESP32-CAM is an ESP32 Wireless IoT Vision Development Board in a tiny form factor, designed to be used in various IoT projects, such as home smart devices, industrial wireless control, wireless monitoring, QR wireless identification, and so on. It supports deep sleep mode with power consumption as low as 6mA at 5V, making it ideal for portable IoT applications. It's suitable as a low-cost CCTV camera.

SETUP INSTRUCTIONS:

https://www.youtube.com/watch?v=VCZXSh6f5sE&t=15s

FEATURES:

• The smallest 802.11b/g/n/e/i Wi-Fi BT SoC Module
• Working Voltage: 5V
• Package: DIP-16
• SPI Flash: Default 32Mbit
• Built-in 520KB SRAM and External 2MB PSRAM
• Comes with RHYX M21-45 (Support OV2640 Camera & OV7670)
• Built-in Flash LED - GPIO 04
• Supports: UART/SPI/PWM/I2C
• Support micro SD card (max 4GB)
• Antenna: onboard PCB antenna, gain 2dBi
• 9 x I/O Ports
• Dimension: 27mm x 48mm x 4.5mm (HxLxW)
• Supports multiple sleep modes:
  • Deep sleep: the lowest power consumption can reach 6mA@5V
  • Light-sleep: The lowest can reach 6.7mA@5V
  • Modern sleep: The lowest can reach 20mA@5V
