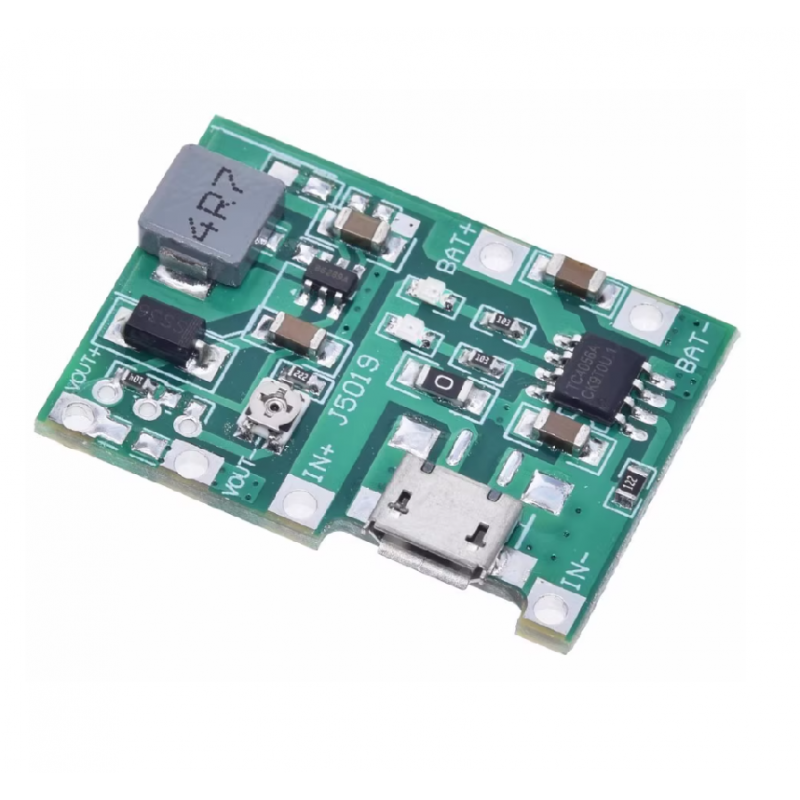

USB Lithium Lipo 18650 Charger 3.7V 4.2V to 5V 9V 12V 24V Step Up Module Adjustable Output

MYR2.90
REFERENCE#: D21-LCADJ
AVAILABILITY: 18 PIECE(S) SHIP SAMEDAY / NEXT WORKING DAY
Quantity
In Stock

USB lithium lipo 18650 charger 3.7V 4.2V to 5V 9V 12V 24V step up module Adjustable Output

Features:

  • Before use, the default output is about 9V
  • Input voltage 4.5-8V (with micro usb connector)
  • Output voltage continuously adjustable 4.3-27V
  • (Any voltage above 4.3V and below 27V can be output and adjusted by yourself
  • Counterclockwise to increase voltage)
  • Charging voltage 4.2V
  • Charging current maximum 1A
  • The maximum discharge current is 2A. You need to calculate the output current yourself.
  • Output reference maximum current 5V 1.4A,  9V 0.8A,  12V 0.6A
  • Quiescent current is about 0.5 mA
  • Overcharge protection
  • Over discharge protection No (or yes, 2V cut-off boost)
  • But if the output is not blocked, the output will still have 2V)
  • Cut-off boost voltage 2V. Add protection board depending on the situation.
  • Size 3.3X2.3X0.9
  • For example, VIN+ terminal is connected to 5V solar panel and BAT+ terminal can output 4.2V to charge 3.7V 18650 battery.
  • The OUT+ terminal can output an adjustable voltage. You can adjust it as needed.
  • Can be used for multimeter modification lithium battery charging
