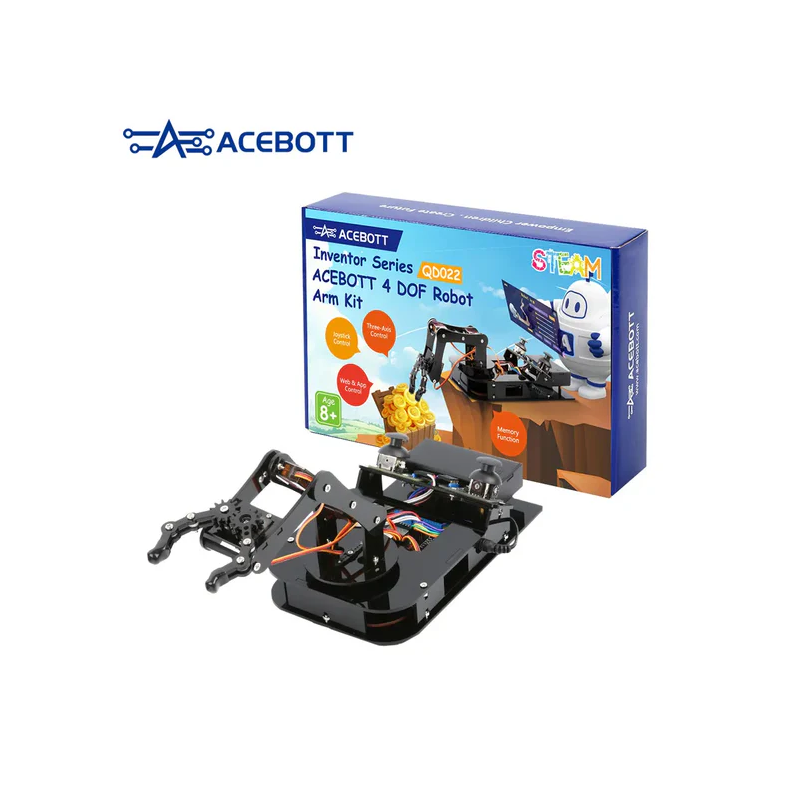

ACEBOTT QD022 ESP32 Programmable 4 DOF Robot Arm Kit for Arduino

NOTE: This kit DOES NOT come with 2x 18650 Li-Ion Battery, please ORDER SEPARATELY

Tutorial Download:
https://www.dropbox.com/scl/fo/whgyo4xylun3spupfvgws/AKqL-pMXq38Z6D5MDVQUATY?rlkey=cr86qtuuxxg1rwotz63dsat3z&st=kn1c82qo&dl=1

STEM Smart Robot Arm Kit

The 4 DOF Robot Arm Kit is an ideal hands-on learning tool for students and educators. Designed specifically for beginners, this kit provides an in-depth understanding of how robot arms function. Students will learn to program the arm’s movements, control its actions, and explore various techniques for operating a multi-DOF (Degrees of Freedom) robot.

By engaging with this kit, learners will gain valuable skills in robotics, coding, and mechanical design, setting the foundation for more advanced robotics projects in the future. Perfect for classrooms, workshops, and STEM programs!

Multiple Applications
Our smart robot arm is a popular choice for college classrooms and DIY projects. Designed with STEM (Science, Technology, Engineering, and Mathematics) education in mind, it engages children in hands-on learning while fostering their educational growth and having fun along the way!

Beginner-friendly
With the included instruction guide and preset coding files, this tutorial will walk you through each step of building and coding your robot using block-based ACECode. If you ever need assistance, the ACEBOTT technical team is just a call away, ready to provide support whenever you need it.

Ideal STEM Educational Toy Gift
Our Robotic Arm Kit is the perfect gift for innovation lovers. Beautifully packaged, it’s designed to inspire and educate, making it ideal for birthdays, Children’s Day, Christmas, Easter, and more. Whether for STEM activities, school projects, or family fun, this kit turns learning into an exciting adventure.

Multi-function Programming
Equipped with 4 servo motors and a 3-axis coordinate system, this robot arm offers joystick and web/app control, making it perfect for object manipulation and a range of robotics applications. It can grab objects in any direction—up, down, left, right, and everything in between—giving your creations superpowers! Versatile and fun, it’s the ultimate robotics tool

Features

•     4 Degrees of Freedom (DOF): Allows multi-angle movement and complex task execution.
•     ESP32 Microcontroller: Powerful, dual-core performance with Wi-Fi and Bluetooth capabilities for wireless control options.
•     Arduino Compatible: Easily program and customize behaviors using the popular Arduino IDE.
•     Durable Construction: High-quality parts ensure long-term durability and precision.
•     Educational Focus: Perfect for STEM education, DIY robotics projects, and learning automation concepts.
•     Wireless Control Options: With ESP32’s Bluetooth/Wi-Fi capabilities, control via mobile apps or PC interfaces is possible (additional coding required).


Specifications:

•     Controller: ESP32 Development Board
•     Degrees of Freedom (DOF): 4 (Base rotation, shoulder, elbow, and wrist movement)
•     Servo Torque: 0.1765 Nm
•     Servo Speed: 0.1 s/60°
•     Programming Environment: Arduino IDE, AceCode
•     Connectivity: Wi-Fi and Bluetooth (built-in ESP32)
•     Power Supply: 5V-6V (external power supply recommended for servo operation)
•     Assembled Size: (23 x 15 x 4.5) cm
•     Weight: 700g

Packing List

    1 x ESP32 Max V1.0 Controller Board
    1 x Acrylic Board Set
    4 X Servo MG90 9G
    12 x F-F 1P Dupont Wire
    2 x Joystick Module
    1 x USB Cable 1M
    1 x 18650 Battery Holder
    2 x Nylon Cable Ties
    1 x Screwdriver
    1 x L-Angled Socket Spanner
    6 x Non Slip Mat
    4 x Non Slip Sleeve
    9 x M3*12MM Dual Pass Copper Pillar
    17 x M3*8MM Flat Head Screw
    24 x M3*10MM Flat Head Screw
    5 x M3*14MM Round Head Screw
    24 x M3 Nickle Plated Nuts
    4 x M3 Nickle Plated Lock Nuts
    10 x M2*10MM Round Head Screw
    10 x M3 Nickle Plated Nuts
    10 x M1.7*6 Large Round Flat Head Tapping Screw
    2 x M3*22MM Flat Head Screw
    1 x M3*35 Nylon Column
    6 x M3*3 Nylon Gasket
    2 x M3*6 Nylon Gasket
    4 x Blocks
