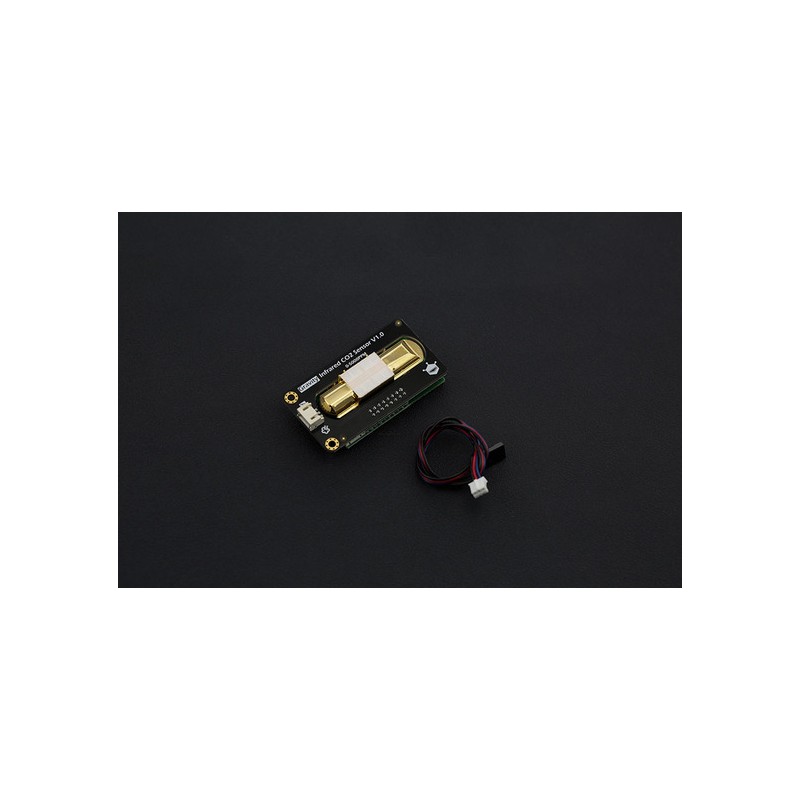

Gravity: Analog Infrared CO2 Sensor For Arduino (0~5000 ppm)
MYR325.00
Features
- Waterproof and anti-corrosion
- High sensitivity
- Low power consumption
- Excellent stability
- Temperature compensation
- Excellent linear output
- High cycle life
- Anti-water vapor interference
- No poisoning
Specification
- Gas Detection: Carbon Dioxide
- Operating Voltage: 4.5 ~ 5.5V DC
- Average Current: <60mA @ 5V
- Peak Current: 150mA @ 5V
- Output Signal: Analog output (0.4 ~ 2V)
- Measuring Range: 0 ~ 5000ppm
- Accuracy: ± (50ppm + 3% reading)
- Preheating Time: 3min
- Response Time: 120s
- Operating Temperature: 0 ~ 50 ℃
- Operating Humidity: 0 ~ 95% RH (no condensation)
- Service Life: >5 years
- Size: 37mm * 69mm
- weight: 34g
Shipping List
- Gravity: Analog Infrared CO2 Sensor For Arduino x1
- Analog Sensor Cable for Arduino x1
E22-SEN0219
