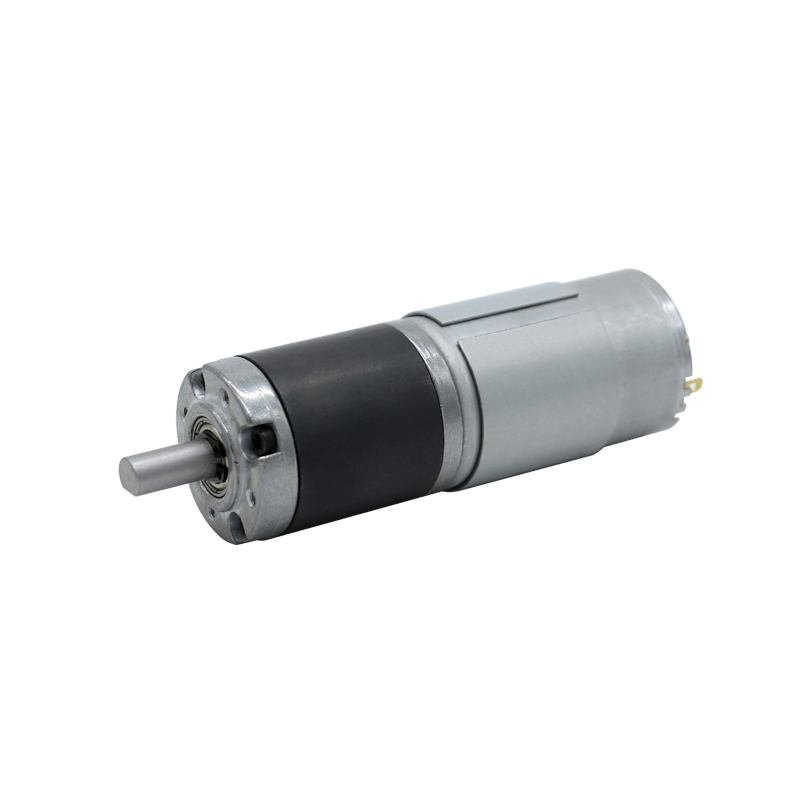

Item Description: BX-36PGM-555 Planetary DC Geared Motor 12V

(1) About Planetary Geared Motor:
– A versatile motor with small size, low noise, substantial output torque, stable operation, and an extended lifespan. The planetary gear motor’s life is three times that of an ordinary gear motor, provided the project load stays within the motor’s torque capacity.

(2) Rating:

– Voltage:  DC 12V
- No Load Current : 500mA
- Rated Current: 1.3A
- Rated Input Power: 15W
- Shaft Diameter: 8mm

(3) No Load Speed Options:
– 11 / 30 / 58 / 113 / 300  RPM

(4) Rated Load Torque : 100 / 38.3 / 22.8 / 12 / 6 (kgf.cm)
– The motor’s torque varies with its speed. Slower speeds provide greater torque, and faster speeds support lighter loads. Torque decreases as speed is reduced, and the final torque may vary based on the chosen speed.

(5) Rotation Direction:
– Clockwise (CW) or Counterclockwise (CCW); Supports Reversal

(6) Gear Material:
– Metal gears for extended motor life

(7) Speed Adjustment:
– Motor speed can be adjusted using a speed controller. Note that as speed decreases with a controller, motor torque also decreases, and attention is needed to avoid damage.

(8) Versatile Applications:
– Suitable for various micro-automation equipment, including Smart Robots, Smart Cars, AUtomatic Doors and WIndows, DIY tanks, Vending Machines, Automatic Barnecue Grills, parking locks etc. Confirm voltage and torque suitability for your project before purchase.



Instructions For Use

1. Welding power cord:
The soldering iron temperature is 340°C + 40 °C, and the welding time is controlled within 3 seconds. The plastic of the motor terminal cannot be deformed, and at the same time, coal and tin cannot flow into or drip into the motor, otherwise the motor cannot be used or the service life will be affected.

2. Motor installation:
Pay attention to the length of the screw for the installation of the optical motor. If it is too long, it will contact the motor rotor, When the motor is damaged, the force of tightening the screw should not be too large. Please use correct bracket for the motor.

3. Beware of eccentric load:
When the motor drives an eccentric load, pay attention to the load should not be too large, otherwise it will seriously affect the life of the motor.

4. Do not overload work:
When the motor is overloaded, the working current will be very large, resulting in serious heating of the motor. In order to ensure the service life of the motor, please check whether the load is used in accordance with the regulations and cannot be overloaded.

5. Beware of stalling:
During the use of the light motor, it should not be blocked for a long time (stuck without turning), otherwise the motor will overheat, burn the coil, and even cause a fire.

6. Installation of shaft end fittings:
When the shaft end of the motor is pressed into parts such as pulleys or gears (tight fitting). Non-standard operation may damage the motor.

7. Operating environment:
Temperature -20°C ~ 60°C, humidity 30% ~ 90% RH.

8. Storage attention:
Do not place in high temperature and humid environment, and do not place in corrosive gas
